Optional DIN Rail Mount

A DIN rail (7.5 X 35 mm) may be installed on the bottom of the base to provide the optional security of

mounting the base to a flat horizontal surface with hardware.

Additional Hardware

• DIN Rail, Qty. 1

• 3/16 in. dia x 5/8 in. long pan head screw, Qty. 2

• 1/2 in. OD x 7/32 in. ID x 3/64 in. thick washer, Qty. 4

• 3/16 in. dia nut, Qty. 2

Note: The items listed above are for reference only. Final hardware selection is dependent on the material type and

thickness of the mounting surface.

Installing the DIN Rail

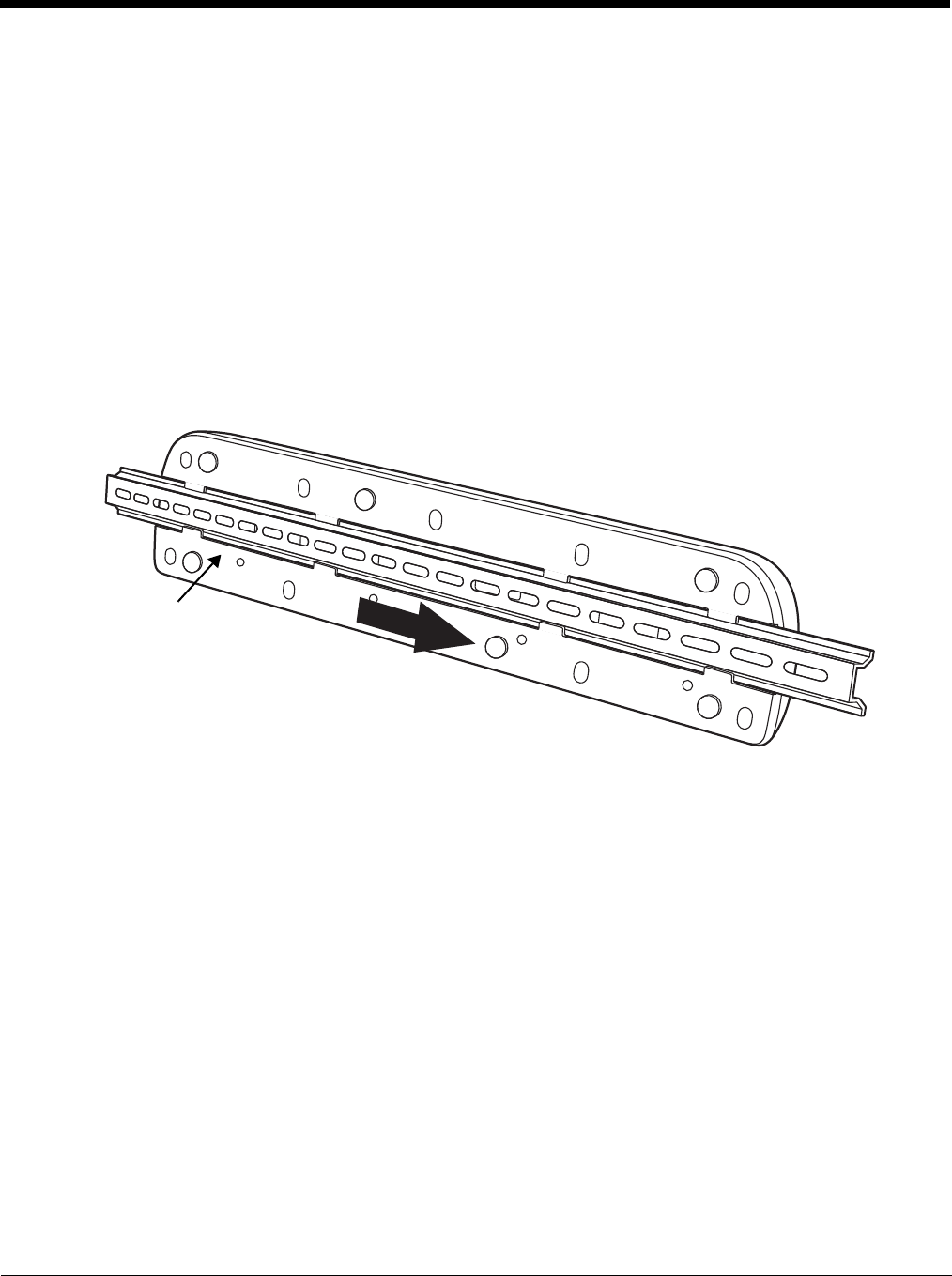

1. Slide the DIN Rail into the DIN Rail slot on the bottom panel of the base.

2. Turn the base and DIN Rail right side up.

3. Use the appropriate hardware to secure the DIN Rail to a stable, flat horizontal surface.

DIN Rail
